Technological Data
Door Weight: 180-250kg
Dimension of appearance: 322x130x61mm
Suitable for door size: 1500x3000mm
Location degree: 90°
Double action door: √
2 Section speed adjustment valve: √
The products have passed national QB/T2697-2005

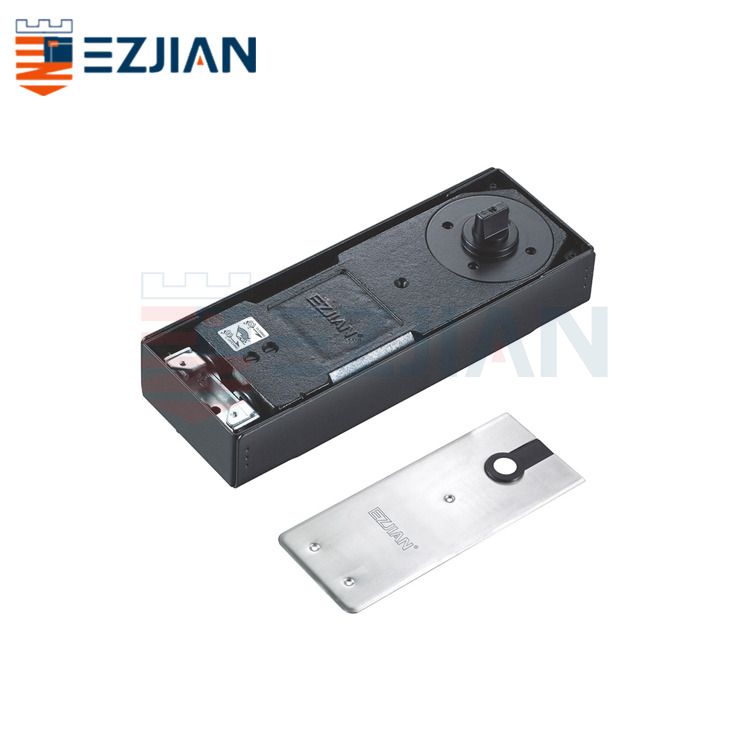

| Item | glass door floor spring |
| Cover plate material | 201/304 stainless steel |
| Plate thickness | 1.5mm |
| Surface treatment | satin, chrome polish |
| Body material | iron |
| Size | 322*130*61mm |
| Capacity | 180-250kg |
| Suitable door width | 1500*3000mm |
| Location degree | 90° |
| Speed control | 2 section speed adjustment |
| Product Keywords | floor spring, floor hinge, hydraulic floor spring, glass door floor spring |
Product advantages:
1.All of floor springs have passed many opening and closing tests, meeting safe applications standard.
2.High quality casting iron floor spring body, stainless stell cover.
3.General designed is suitable for opening doors with left / right hand and single / double opening ,accessories are available for each means.
4. Adjustable axis is designed to install and adjust easily & precisely.
5. Easy maintence.
OEM /ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
Samples could be prepared for you on time;
Guide you how to install;
Compensation will be made at once if our party was at fault in quality;
If you intend to visit our factory, pls inform us in advance,we pick you up if our driver is available.
