Home / Products / Floor Hinge Series
  • Floor Hinge EJ-50

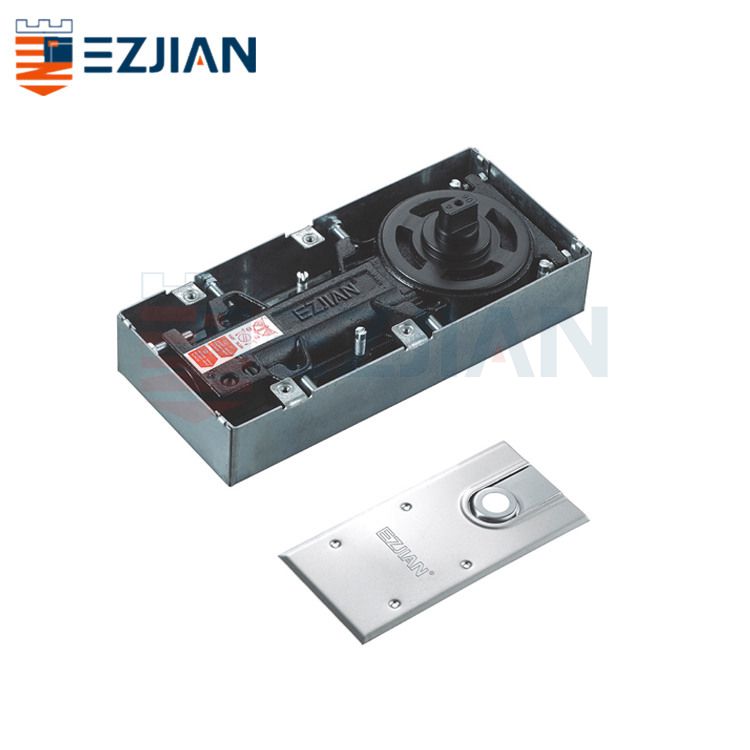

Floor Hinge EJ-50

High quality casting iron Stainless Steel Floor Springs body, stainless stell cover.
PRODUCT DESCRIPTION

Technological Data

Door Weight: 85kg

Dimension Of Appearance: 250x110x47mm

Suitable For Door Size: 800x2200mm

Location Degree: 90°

Double Action Door: √

2 Section Speed Adjustment Valve: √

The products have passed national QB/T2697-2005


Itemglass door floor spring
Cover plate material 201/304 stainless steel
Plate thickness 1.0mm
Surface treatment satin, chrome polish
Inner body iron material
Size 250*110*47mm
Capacity 85kg
Suitable door width 800*2200mm
Location degree 90°
Speed control 2 section speed adjustment
Product Keywordsfloor spring, floor hinge, hydraulic floor spring, floor spring door closer


Product advantages:


1.All of floor springs have passed many opening and closing tests, meeting safe applications standard.

2.High quality casting iron floor spring body, stainless stell cover.

3.General designed is suitable for opening doors with left / right hand and single / double opening ,accessories are available for each means.

4. Adjustable axis is designed to install and adjust easily & precisely.

5. Easy maintence.






OEM /ODM is available

---Printing logo on customized products

---Customized design and material

---Customized packing for your products

Samples could be prepared for you on time;

Guide you how to install;

Compensation will be made at once if our party was at fault in quality;

If you intend to visit our factory, pls inform us in advance,we pick you up if our driver is available.
